Cork
Rubber Sheet
Item No.:ZD-GS2051
Description:ZD-GS2051

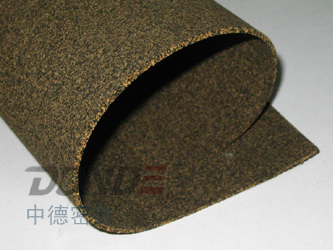

is a compound
of cork and rubber made by using granulated cork and synthetic rubber
polymer and their assistants. The product has properties of high
resilience of rubber and compressibility of cork, so its performance is
excellent. It can be used as gaskets of various engines of automobiles,
tractors、plans、ships、and
pipes petroleum, transformers、electric
equipment and apparatuses. It is a kind of new type high-grade static
sealing materials used to seal low and medium pressure.
Common Size：
LxWxT:950×640mm×0.8~100
mm (Untrimmed)
LxWxT:915×610mm×0.8~100
mm (Trimmed)
1800×650mm
(New)
Packing:
Carton
950×640mm×300 mm
Main Specification：
|
Item |
Graded
by hardness |
|
Hardness: Shore A |
55-70(Medium) |
70-85(Hard) |
|
Density: g/cm3 |
≤0.9(Medium) |
≤1.05(Hard) |
|
Tensile Strength: kg/cm2 |
≥15(Medium) |
≥20(Hard) |
|
Compressibility (% 300psi load) |
15-30(Medium) |
10-20(Hard) |
|
Sealing Pressure(min) |
28kg/cm2 |
|
Internal Pressure(max) |
3.5kgf/cm2 |
|
Service Temp(max) |
-40~120~150℃ |
